BOXES PALLETIZING MACHINE

Boxes palletization. Plant that optimizes the positioning of the boxes with different dimensions on pallets

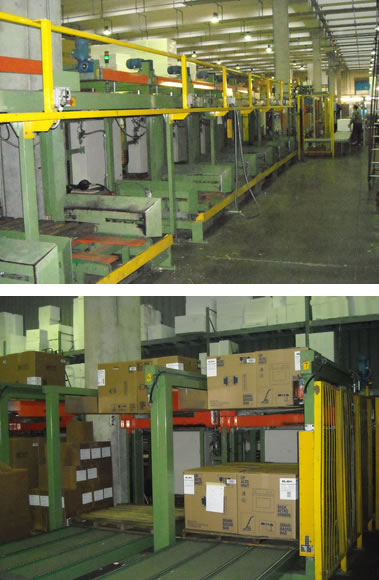

Pallettizzatore scatolePlant that optimizes the positioning of the boxes with different dimensions on pallets, thanks to a simple configuration program. By the bar code reading, that is  placed in the boxes, the device can identify  where the pallet must be located, all to simplify the management operation order/storehouse. The machine is completely automatic and can manage up to 7 palletizing station, the machine working foresees that the box comes in a lifting station, which carries it to height of the palletization line; at the same time the scanner reads the bar code and if the box is “ok” the product goes to a rotary station and turns according to the pallet disposition and after transfers by a belt conveyors on the palletizing station, but if the scanner reads it is “not ok”, the machine unloads the box on the recovery conveyor.
The empty pallet are automatically taken from the pallet piling machine (one for station) and located in the piling up zone.
When the palletizing operation finishes, the pallet must be taken by pallet truck. The operator also must feed with pallet the piling machine.


Dimensions: 2600x14800x5950 (mm)
(height - lenght - windth)
Height of transfering plate: 1840 mm
Height of loading plate: 580 mm
Height of unloading plate: 370 mm
Feed tension: V.220-380/50Hz
Auxiliary tension: V.24dc
Absorbed power: 40Kw
Air pressure: 6 bar
Air consumption: 250 Nl/min
Boxes dimensions:
Windth: from 570 to 670 mm
Deep: from 585 to 960 mm
Height: from 660 to 1040mm
Max weight: 100 Kg

CUSTOMIZED MACHINE
