Automatic packing machines for heating appliances
Heating appliances packaging line. Open carton packaging system
.jpg)
This plant was born from customers that needed to have a reduced quantity of cartons in their warehouses, despect a great variety of package dimensions for different heating appliance models.

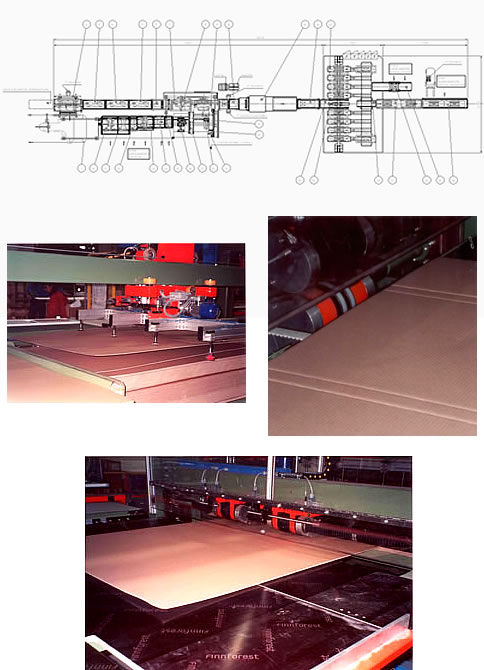

This packing system self-sizes the open carboard sheet, which is selected and prepared on the base of products arriving from the painting line.
The packing consists on single units cardboard envelopment, which was previously selected among six fixed dimensions (from Pos. 10 to Pos. 15), creased in width and height and cut in length.
The creasing is completed (Pos. 22) with the aid of an operator on the base of single units dimension.
The last operation, the upper edges closure, is manually made with staples, adhesive tape, or hot glue.
In this last case the operation can also be automated consequently to the manual phase.
The plant layout can vary on the base of available space.
DESCRIPTION
Pos. 2 Painting line unloader
Pos. 3 Conveyor
Pos. 4 Conveyor
Pos. 5 Conveyor
Pos. 6 Side leveling device
Pos. 7 Radiator picking up station
Pos. 8 Radiator loading manipulator
Pos. 9 Longitudinal flaps folder
Pos. 10 Control shoulders carton 1st dimension
Pos. 11 Control shoulders carton 2nd dimension
Pos. 12 Control shoulders carton 3rd dimension
Pos. 13 Control shoulders carton 4th dimension
Pos. 14 Control shoulders carton 5th dimension
Pos. 15 Control shoulders carton 6th dimension
Pos. 16 Carton loading manipulator
Pos. 17 Automatic creasing machine
Pos. 18 Carton trolley
Pos. 19 Front shears
Pos. 20 Carton trimming trolley
Pos. 21 Carton transfer manipulator
Pos. 22 Flaps closure station
Pos. 23 Filming station
Pos. 24 Cooling station
Pos. 25 Picking up station
Pos. 26 Palletizer
Pos. 27 Storage zone
Pos. 28 Double shuttle
Pos. 29 Pallet piling machine
Pos. 30 Special pallets insert zone
Pos. 31 Conveyor
Pos. 32 Conveyor
